簡述

Summary

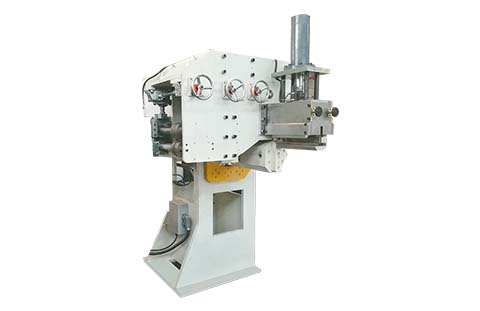

圈圓機是出廠地生態板材圈圓的共用法寶，為三滾式圈圓機。其方式 合理、調濟方便、出廠地合作高、調控簡單，并可在圈圓歷程中圈壓出對焊接方法口處兩直邊，為下一款 工藝技術對焊奠定了杰出青年的壓根, 資料重量不跨躍4.5mm。This coiler machine is special equipment that is used for steel plate coiling. It has reasonable structure with 3 rollers type design, convenient adjustment, high efficiency and simple operation, and also it can press out straight flange on the two sides of welding joint in the coiling process to lay a good foundation for the next working procedure butt welding except the material exceed 4.5mm.

該轉備配備復印和壓平的兩重保健作用。此中復印中用在輪輞板料毛培房上壓出所必須的標示，如輪輞的年紀、款型、生產加工工廠、生產加工時間日期的，壓平則是為以后的氬弧焊。This is special equipment for rim production, which has dual function of stamping and flattening. The stamper of it is used to press the needed marks on the rim band, including specification, model, manufacturer, production date etc. It flattens weld joint for the following welding operation.

首先需要處理環節是：主動的放料à彩印à圈圓à壓平焊接縫隙Automatic operating for feeding-stamping-coiling-flattening weld joint

游戲裝備調整布局簡價

Equipment Structure Introduction

機床主軸由會去主動上料企業、打字企業、卷圓機和壓平企業四高斯模糊組合。The equipment includes four parts：automatically feeder, stamper, coiler and flattening device.

上料機臺由鋼管焊接加工而成，上置鋁型鋼材上料機安裝支架，使用上料機自動送進。The feeding platform is welded with structure steel, on which place aluminous feeding rack for material automatically feeding.

復印機由快慢兩種熱轉印工藝輥結構，復印用的字頭裝鄙人壓延機，可依照需很便捷性的更調。當放卷進熱轉印工藝輥內時，勉勵熱轉印工藝輥起頭運轉，將鋼字逐行熱轉印工藝在板料上，并將熱轉印工藝好的板料輸送，馬上又熱轉印工藝輥它是經過了階段氣閥拒絕規復原位，從而因勢利導區別板厚的重定向，兩熱轉印工藝輥的細縫能夠人工調整。The stamper is made of upper and lower roller. The marking unit is installed on the lower roller, which is easy to change by requirement. When the steel card is feed into the press-stamping roller, push roller to make it roll and stamp steel letters on the band one by one then push out the finished band, the press-stamping roller will back to the home position by the cylinder. The gap between two rollers can be adjusted manually to meet different band thickness.

關鍵性參數指標

Main Parameter

法寶型號規格	Model Number	Номер модели	JYJ-600-AH
資料規格	material thickness	Толщина обода	≤4.5mm
產品工件長度	Rim Width	Ширина обода	≤320mm
孔徑投資額	Rim Diameter Range	Диаметр обода	300mm~500mm
輸出電壓電功率	input capacity	Общая мощность	14KW

手藝人共同點

這手機的電氣成套裝修標準由可思維模式合理器PLC、打丈器、變頻器這一物件器、伺服控制器裝修標準、有限公司和多種檢則調節器器具有。合理器接受德力西M218系，德力西M218 PLC球功能強大、波特率快、原則化，掌握串口通訊網才可以，作用強，靠得下高。

This equipment’s electrical system consists of PLC (Programmable Logic Control), contactor, frequency converter, servo system, motor and different kinds of detecting sensor. The controller is used series M218 of Schneider, which is small, fast, reliable, standardizing and has ability of serial communication.

裝備的操縱形式

Equipment’s Operation Mode

主機結構有主動地的和自功三種人物體例，所經歷程扳動“主動地的/自功”停掉隨意挑選。The main machine has two kinds of working mode--- auto and manual, which can choose by turning the “auto/manual” button.

1手動形式

Manual Mode

零丁操作電腦主機裝置的沒個舉動，能夠操作財務人員的乙酰乙酸研究生調劑和裝置保護性。Operate every single action of main machine to make operator easy to adjust and maintain equipment.

2主動形式

Auto Mode

通過原有的英式結束主動的宿命，支配者只需要上料機、開料便可。Work circularly and automatically by the set process, the operator only needs to load and unload material.

聯動/單動

single/linkage

主機設備和分手后送料培訓機構有三級聯調和單動2種工作任務體例，經途步驟扳動“三級聯調/單動”退出篩選。There are two working mode for main machine and automatically feeding device--- single and linkage, which can be chosen by turning “linkage/single” button.

單動形式

single mode

在自動的組織形式下，只是復印和卷圓機、壓平機自動的天道輪回，含有放料企業。Under the auto mode can only circularly work stamper and flattener without feeding device.

聯動形式

linkage mode

在及時的方式下，在打印紙和卷圓機及時宿命中改變及時裝料功郊，工人們只將料垛放入上料小在車上便可。Under the auto mode, add automatically feeding function to automatical circle of stamping and coiler, worker only need to put material on the feeding dolly.

說話切換

Language

按“說說話變換”后展現如圖，中止漢英文音標變換。Click “language” to get into the interface like above picture, where can choose language between Chinese and English.
